Introduction of Industry Filter
Industry Filter consist of rods and warp. The rod has three type wires, namely round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Industry Filter have many advantages including robust structure, large open area, accurate slot dimension, heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

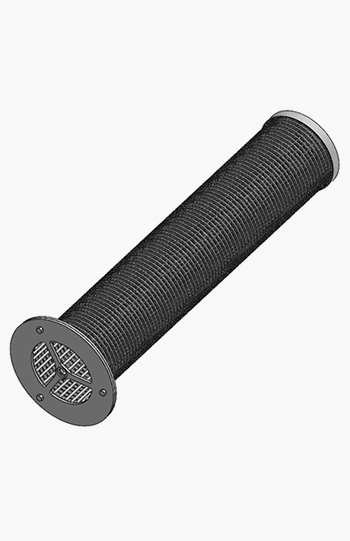

Construction of Industry Filter
Rods spaced evenly around the circumference support the screen and prevent the screen from deformation.
V-shaped wire produces self-cleaning action and non-clogging performance. The slot width on surface is increasing towards the internal side of the screen. This slot geometry is called keystone slot which has the ability of anti-plugging.
Precise slot width should be designed to satisfy operation requirements. Usually, the slot width is two times the size of the formation sand.
End fittings can be customized to secure the screen body.
Material
Industry Filter are usually fabricated by stainless steel 304-316L, low carbon galvanized steel, also to be satisfied with the application environment required,
Bespoke design
Industry Filter can be manufactured into diverse slot widths and configurations depend on applications. Slot widths come in diverse sizes from 0.02mm (20 microns) to 10mm.
Industry Filter can be manufactured. Length, width, spacing of profile wire can be engineered to meet required service conditions.
Characteristics
1)World class quality: OASIS provide our clients with high quality screen tubes and related products. OASIS had passed ISO9001:2008 quality control system.
2)Third party inspection: The productive process of OASIS screen is controlled by third party test company such as BV,SGS,etc. or client's representative.
3)Non standard screens: We can supply customer designed and engineered screens according to clients’ requirements.
4)Quick delivery: OASIS can prepare stock for our regular clients to meet clients' requirement at any time.
5)Lower maintenance of the well: The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.
6)Environmentally safe: OASIS has signed the file to protect the environment with our local Environmental Protection Administration.
